Description

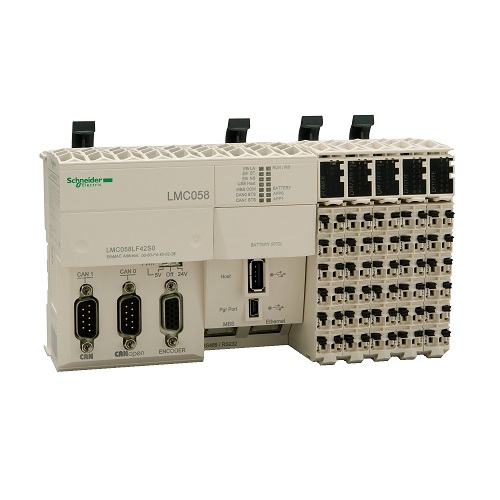

General information of LMC058LF42 :-
- 42 digital I/O including 8 high-speed counters (200 kHz)
- CANopen master
- CANmotion master
- The LMC058LF42 motion controller is 177 mm wide.
LMC058LF42 | Schneider | Compact Base Supply Description:-
- A display block with:
- 4 motion controller status LEDs (RUN/MS, BATTERY, APP0 and APP1)
-7 built-in communication port status LEDs (Eth LA, Eth ST, Eth NS, USB Host, MBS COM, CAN 0 STS, CAN 1 STS) - Locking lever for mounting/dismounting on 5 symmetrical rail
- A 24 V c power supply module with removable terminal block and locking lever, display block and slot for a label
- I/O modules, each one with a removable terminal block with locking lever, a display block showing the I/O states and a slot for a label-holder
- Removable terminal block with locking lever for locking/unlocking
- On the side, an expansion bus connector for connecting to the next module
- A slot for the RTC (Real Time Clock) battery
- A USB-A connector (marked Host) for connecting a USB memory stick for transferring programs, data or firmware updates
- A USB-B mini-connector (marked Pgr Port) for connecting to the programming PC
- An RJ45 connector (marked Ethernet) for connecting to the Ethernet network and/or Magelis XBTGC graphic terminal
- An RJ45 connector (marked MBS) for the RS232 or RS485 serial link
- A 15-way female SUB-D connector, marked ENCODER, for connecting the master encoder and a selector switch for the 3 encoder supply voltage states (5 V, Off, 24 V)
- A 9-way male SUB-D connector, marked CAN0, for connecting to the CANopen bus
- A 9-way male SUB-D connector, marked CAN1, for connecting to the CANmotion bus
Schneider models:-
| Model | Description |
| BMH1402P16A2A | Servo motor BMH - 18.5 Nm - 4000 rpm - keyed shaft - without brake - IP54 |
| LXM32CD72N4 | Motion servo drive, Lexium 32, three phase supply voltage 208/480 V, 7 kW |
| TM3AI4G | Analog input module, Modicon TM3, 4 inputs (spring) 24 VDC |
| LMC058LF42 | Compact base - 42 I/O - 24 V DC supply |
| LXM32AD30N4 | Motion servo drive, Lexium 32, three phase supply voltage 208/480 V, 3 kW |
| ATV312H075N4 | Variable speed drive ATV312 - 0.75kW - 2.4kVA - 41W - 380..500 V- 3-phase supply |
| LXM32AD18N4 | Motion servo drive, Lexium 32, three phase supply voltage 208/480 V, 1.8 kW |
| LXM32AD30N4 | Motion servo drive, Lexium 32, three phase supply voltage 208/480 V, 3 kW |
| ATV312H075N4 | Variable speed drive ATV312 - 0.75kW - 2.4kVA - 41W - 380..500 V- 3-phase supply |
| VW3M5101R100 | Power cable - between servomotor BDH, BSH and servodrive - 4x1.5mm²+2x1mm² - 10m |
| BSH1002P11A2A | AC servo motor BSH - 3.4 N.m - 2500 rpm - keyed shaft - without brake - IP50 |
| XVBC21 | Base unit + cover for modular tower lights, plastic, black, 70, bottom entry, side cable entry |
| ATV12H075M2 | Variable speed drive ATV12 - 0.75kW - 1hp - 200..240V - 1ph - with heat sink |
| MS23AI21N5 | Automatic Star Delta Starter |
